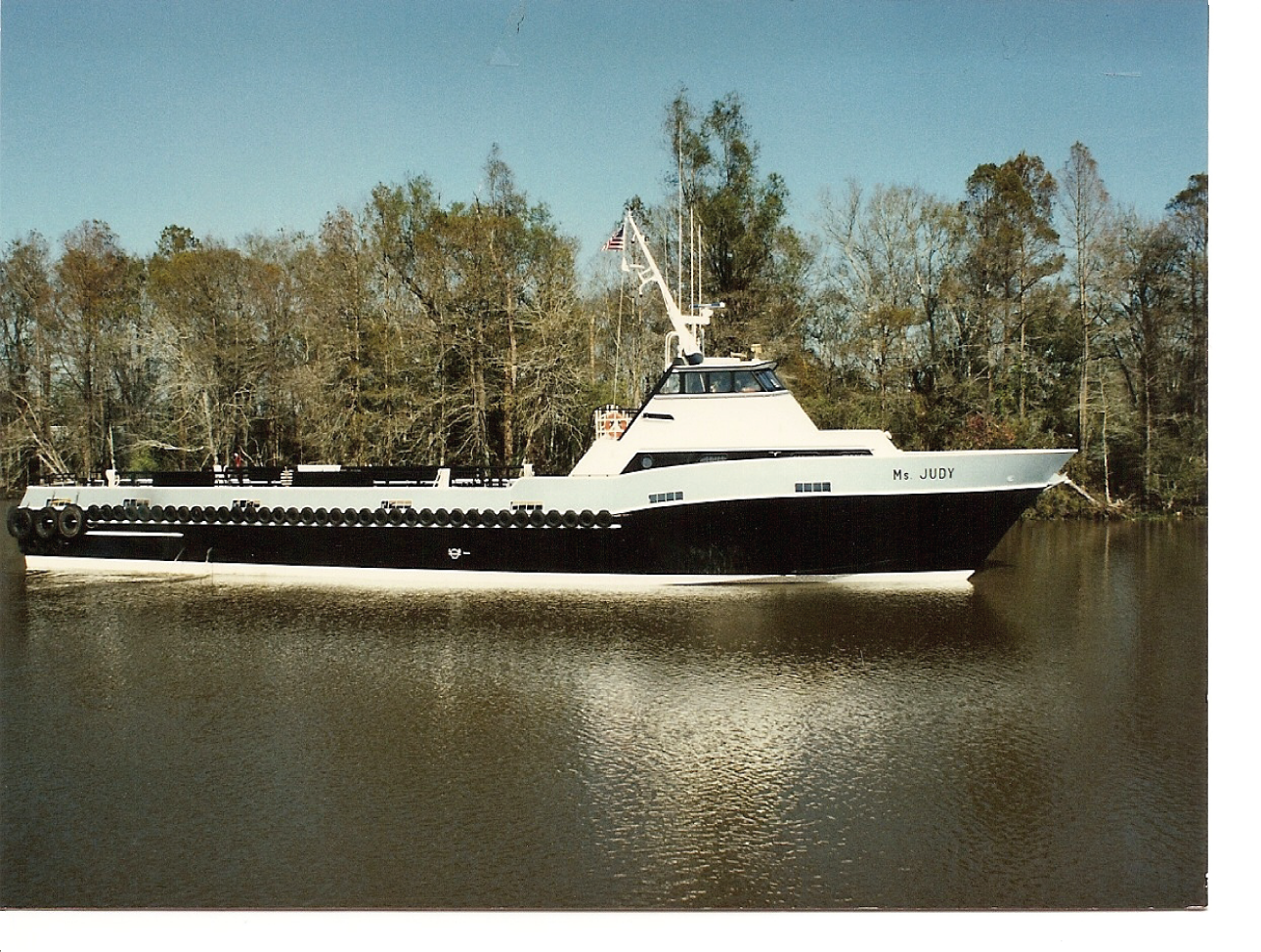

SPECIFICATIONS ON M/V MS. JUDY

135’ CREW/SUPPLY VESSEL

REGISTRATION:

Owner/Operator:  Tobias Inc.

Official No.: 970694

Builder: Breaux’s Bay Craft

Year: 1990

Hull:  Aluminum

Number in Crew:  4

USCG Certified for 200 miles Offshore

Port of Erath, LA



GENERAL INFORMATION:

Dimensions:  135’x 26’x 5’6”

Clear Deck Space:  75’x 22’

Net Tonnage:  68

Gross Tonnage:  98.6



PROPULSION:

Main Engines: (4) 3412 Caterpillar

Total HP:  3060

Reduction Gear:   Twin Disk 518- 2.5:1

Steering:   Hydraulics

Vessel Speed:   23 Knots

Fuel Consumption- 125 GPH

Stern controls



LIQUID AND PUMPING CAPACITIES:

Fuel Gallons:  10,000

Portable Water Gallons:  18,000

Lube Oil:  200



 ACCOMMODATIONS:

Certified to carry 65 persons

State Rooms:  4

Berths:  8

Galley:  Fully Equipped

Air Conditioning:  8 Ton Upper & Lower Units

Heating:  Central throughout



GENERATORS:

(2)   55KW  Caterpillar



ELECTRONICS:

            Radios:  (2) Standard VHF Stevens 222- S.S.B.

            Loran:   Furno L.P.  1000

            Depth Finder:  Data Marine

            Radars:  Furno 806



SPECIAL FEATURES:

150 Ton Deck Cargo Capacity



argin-left: 0in; margin-right: 0in; margin-top: 0in; orphans: 2; page-break-after: avoid; text-align: center; text-decoration: none; text-indent: 0.5in; text-transform: none; -webkit-text-stroke-width: 0px; white-space: normal; word-spacing: 0px;"> 165’ DP 1 CREW/SUPPLY VESSEL



REGISTRATION:

OWNER: TOBIAS, INC

OPERATOR: TOBIAS, INC.

OFFICIAL NO. : 1196546

NUMBER IN CREW:  4

BUILDER: BREAUX’S BAY CRAFT, INC.

YEAR: 2007

HULL: ALUMINUM

USCG  CERTIFIED FOR 200 MILES OFFSHORE

PORT OF ERATH, LA



GENERAL INFORMATION:

DIMENSIONS:  165’x 30’x13’

CLEAR DECK SPACE:  100’x 26’

DECK CARGO CAPACITY:   275 TONS

GROSS TONNAGE:   99 TONS



PROPULSION:

MAIN ENGINES: (4) 3512 CATERPILLAR

TOTAL HP:   6300

REDUCTION GEAR:   TWIN DISK 2.47:1

STEARING:   HYDRAULIC DUAL PUMPS

GENERATORS:   (2) 80KW JOHN DEER

VESSEL SPEED:   31 KNOTS –LIGHT SHIP

        27 KNOTS –LOADED

BOW THRUSTER: THRUSTMASTER 30” TUNNEL

                                 POWERED BY CATERPILLAR 3306B

STEARN CONTROLS



LIQUID AND PUMPING CAPACITIES :

FUEL GALLONS : 16,500

POTABLE WATER GALLONS: 40,000

LUBE OIL: 600 GAL



ACCOMMODATIONS

CERTIFIED TO CARRY 75 PERSONS

CREW BERTHS:   8

GALLY:   FULLY EQUIPPED



DYNAMIC POSITIONING: (DP1)

BEIER IVCS 2000

MFG:  BEIER RADIO



NAVAGATIONAL  AND COMMUNICATION EQUIPMENT:

(2) SSB STEVENS SEA 235 RADIOS

(3) STANDARD QUEST VHF RADIOS

STANDARD VLH-3000 HAILER SYSTEM

FURUNO NX-300 PAPERLESS NAVTEX

(2) RADARS – FURUNO FR 8122

FURUNO GP-7000 COLOR PLOTTER



SPECIAL FEATURES:

CLOSED CIRCUIT TV SYSTEM WITH VIDEO CAMERAS

CATERPILLAR C9 ENGINE DRIVEN FIRE PUMP 1100 GPM

500 GALLON WASTE OIL TANK



CONTACT:

TOBIAS INC.

PO BOX 130

ERATH, LA  70533

PHONE:  337-937-6802

FAX :  337-937-0661
